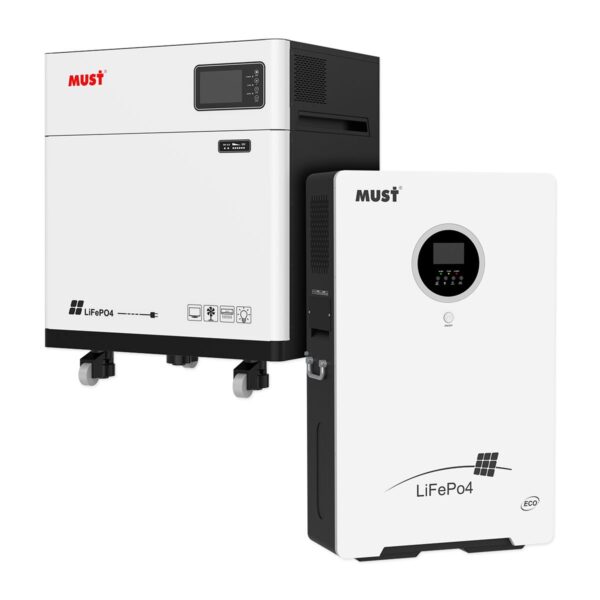

HBP1900 ECO Series (3.5-10kW)

�� Specifications 3.5KW System • Inverter: 24VDC / 3500W • Battery: 25.6V / 125Ah (3200Wh) • MPPT: 100A | PV Input: 400V 5.5KW System • Inverter: 24VDC / 5500W • Battery: 51.2V / 100Ah (5120Wh) • MPPT: 100A | PV Input: 450V 8KW System • Inverter: 48VDC / 8000W • Battery: 51.2V / 300Ah (15360Wh) • MPPT: 120A | PV Input: 500V 10KW System • Inverter: 48VDC / 10000W • Battery: 51.2V / 300Ah (15360Wh) • MPPT: 150A | PV Input: 500V Battery Life: 4000 cycles @ 80% DOD, 25°C Warranty: Inverter – 2 years | Lithium Battery – 5 years ✅ Key Features ■ Integrated high-power inverter and LiFePO₄ battery in one unit ■ All-in-one design with wall-mounted and stackable tower options ■ Color display for real-time monitoring ■ External WiFi support for remote monitoring and management ■ Smart BMS system for precise battery protection and communication ■ Durable lithium iron phosphate battery chemistry ensures safety and longevity ■ Designed for high solar input and efficient energy use ■ Supports energy independence, cost savings, and reliable backup �� Applications Perfect for residential solar storage systems, home backup power, off-grid cabins, and small commercial setups seeking a cost-effective energy solution. MODEL HBP19-3524 ECO HBP19-5548 ECO HBP19-8048 ECO HBP19-10048 ECO Nominal Battery System Voltage 24VDC 48VDC INVERTER OUTPUT Rated power 3500VA / 3500W 5500VA / 5500W 8000VA / 8000W 10000VA / 10000W Waveform Pure sine wave AC Voltage Regulation (Batt.Mode) 230VAC±5%(Setting) Inverter Efficiency(Peak) 90~93% 92% Transfer Time 10ms (UPS / VDE4105) / 20ms (APL) 10ms (UPS / VDE4105) / 20ms (APL)/ 50 ms(For parallel) AC INPUT Voltage 230VAC±5% Selectable Voltage Range 170~280VAC(UPS) / 90~280VAC(APL) / 184~253VAC(VED4105) 170~280VAC(UPS) / 90~280VAC(APL) / 184~253VAC(VED4105) Frequency Range 50Hz / 60Hz(Auto sensing) SOLAR CHARGER & AC CHARGER Maximum PV Array Open Circuit Voltage 400VDC 450VDC 500VDC(single model)/ 450V(parallel model) Maximum PV Input Current 18A 28A 18A*2 27A*2 (Max 40A) Charging Algorithm 4-Step (Li) Maximum PV Array Power 4000W 6000W 4000W*2 5000W*2 PV Array MPPT Voltage Range(Typ.) 30~320VDC 60~360VDC 90~450VDC(single model)/ 90~430V(parallel model) Maximum Solar Charge Current 100A 100A 120A 150A Maximum AC Charge Current 60A 100A 120A 150A Maximum Charge Current 100A 100A 120A 150A LITHIUM BATTERY Energy 3200WH 5120WH 15360WH 15360WH Nominal voltage 25.6V 51.2V 51.2V 51.2V Battery capacity 125Ah 100Ah 300Ah 300Ah Protection board 150A 100A 200A 200A Standard charging & discharge current 125A 100A 200A 200A Cycle life 4000 Charge cycle @ 80% DOD,25°C Operating temperature Charge 0~45°C Discharge -10~60°C MECHANICAL SPECIFICATIONS Machine Dimension (W*H*D)(mm) 480*635*190 480*790*200 Inverter: 600*180*470; Battery: 600*568*470 Package Dimension (W*H*D)(mm) 740*290*600 895*300*600 Inverter: 627*252*585; Battery: 700*710*590 N.W(kg) / / / / G.W(kg) / / / / OTHER Installation Mode Wall-mounted / Floor-mounted Wall-mounted / Floor-mounted Floor-mounted Floor-mounted Humidity 5% to 95% Relative humidity (Non-condensing) Storage Temperature -10~45°C Communication Interface USB/WIFI Standard Warranty Inverter: 2 years ; Lithium battery: 5 years CERTIFICATION & STANDARDS CE-EMC
