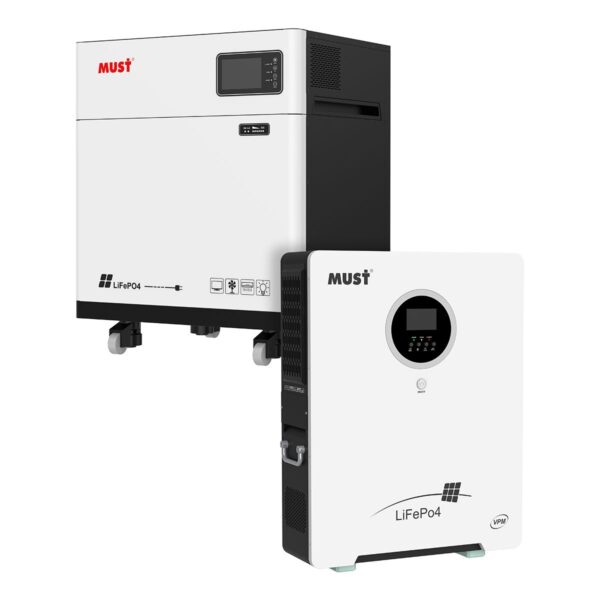

HBP1900 VPM Series (3.5-10kW)

�� Specifications 3.5KW System • Inverter: 24VDC / 3500W • Battery: 25.6V / 125Ah (3200Wh) • MPPT: 100A | PV Input: 400V 5.5KW System • Inverter: 24VDC / 5500W • Battery: 51.2V / 100Ah (5120Wh) • MPPT: 100A | PV Input: 450V 8KW System • Inverter: 48VDC / 8000W • Battery: 51.2V / 300Ah (15360Wh) • MPPT: 120A | PV Input: 500V 10KW System • Inverter: 48VDC / 10000W • Battery: 51.2V / 300Ah (15360Wh) • MPPT: 150A | PV Input: 500V Battery Life: 6000 cycles @ 80% DOD, 25°C Warranty: Inverter – 2 years | Lithium Battery – 5 years ✅ Key Features ■ All-in-one design with compact footprint ■ Wall-mount, floor-mount, and stackable tower options ■ Built-in high-efficiency MPPT solar charge controller ■ Safe and durable LiFePO₄ battery chemistry ■ Smart BMS with advanced communication protocols ■ Color LCD screen for real-time system status ■ WiFi-enabled: Built-in for 3.5KW–5.5KW, optional external for 8KW–10KW ■ Seamless integration with solar systems, supporting energy savings and backup ■ Designed for easy installation and long-term reliability �� Applications Perfect for residential solar-plus-storage, small business energy management, off-grid living, and backup power during outages. MODEL HBP19-3524 VPM HBP19-5548 VPM HBP19-8048 VPM HBP19-10048 VPM Nominal Battery System Voltage 24VDC 48VDC INVERTER OUTPUT Rated power 3500VA / 3500W 5500VA / 5500W 8000VA / 8000W 10000VA / 10000W Waveform Pure sine wave AC Voltage Regulation (Batt.Mode) 230VAC±5%(Setting) Inverter Efficiency(Peak) 90~93% 92% Transfer Time 10ms (UPS / VDE4105) / 20ms (APL) 10ms (UPS / VDE4105) / 20ms (APL)/ 50 ms(For parallel) AC INPUT Voltage 230VAC±5% Selectable Voltage Range 170~280VAC(UPS) / 90~280VAC(APL) / 184~253VAC(VED4105) 170~280VAC(UPS) / 90~280VAC(APL) / 184~253VAC(VED4105) Frequency Range 50Hz / 60Hz(Auto sensing) SOLAR CHARGER & AC CHARGER Maximum PV Array Open Circuit Voltage 400VDC 450VDC 500VDC(single model)/ 450V(parallel model) Maximum PV Input Current 18A 28A 18A*2 27A*2 (Max 40A) Charging Algorithm 4-Step (Li) Maximum PV Array Power 4000W 6000W 4000W*2 5000W*2 PV Array MPPT Voltage Range(Typ.) 30~320VDC 60~360VDC 90~450VDC(single model)/ 90~430V(parallel model) Maximum Solar Charge Current 100A 100A 120A 150A Maximum AC Charge Current 60A 100A 120A 150A Maximum Charge Current 100A 100A 120A 150A LITHIUM BATTERY Energy 3200WH 5120WH 15360WH 15360WH Nominal voltage 25.6V 51.2V 51.2V 51.2V Battery capacity 125Ah 100Ah 300Ah 300Ah Protection board 150A 100A 200A 200A Standard charging & discharge current 125A 100A 200A 200A Cycle life 6000 Charge cycle @ 80% DOD,25°C Operating temperature Charge 0~45°C Discharge -10~60°C MECHANICAL SPECIFICATIONS Machine Dimension (W*H*D)(mm) 486*640*160 486*850*160 Inverter: 600*180*470; Battery: 600*568*470 Package Dimension (W*H*D)(mm) 740*260*600 950*260*600 Inverter: 627*252*585; Battery: 700*710*590 N.W(kg) / / / / G.W(kg) / / / / OTHER Installation Mode Wall-mounted/ Floor-mounted Wall-mounted/ Floor-mounted Floor-mounted Floor-mounted Humidity 5% to 95% Relative humidity (Non-condensing) Storage Temperature -10~45°C Communication Interface USB/WIFI Standard Warranty Inverter: 2 years ; Lithium battery: 5 years CERTIFICATION & STANDARDS CE-EMC
