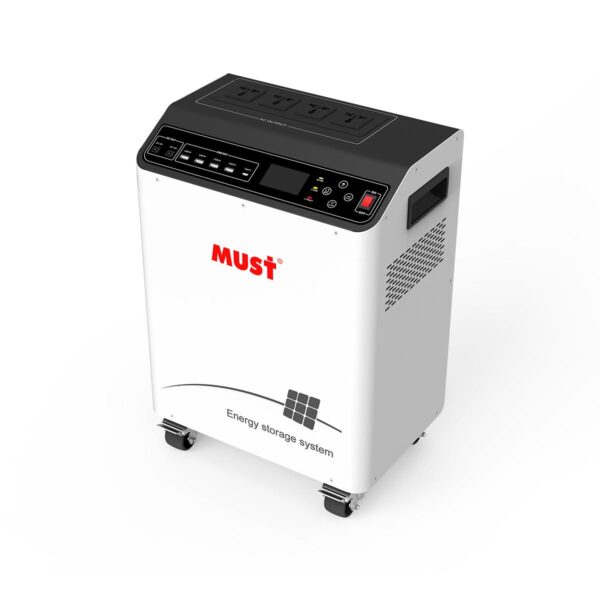

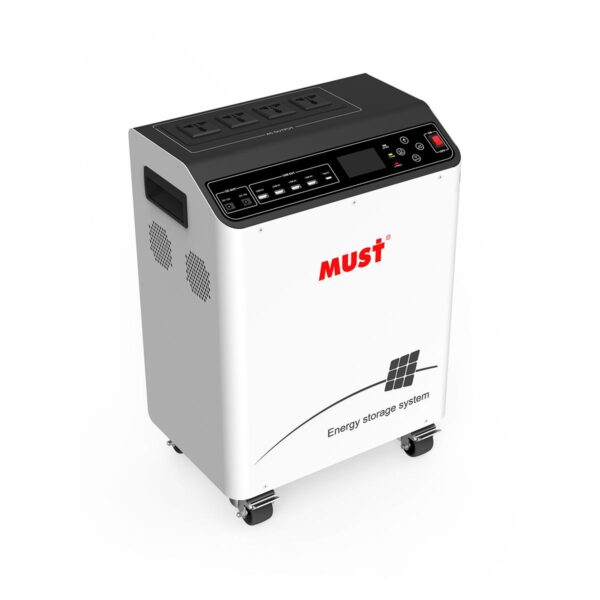

HBP1800 Series (1.2-4KW)

�� Specifications • Inverter output: 1200W / 2000W / 3000W / 4000W • DC voltage: 12V / 24V • PV input: 106V / 160V • Battery capacity: 1280Wh – 7168Wh (LiFePO₄) • Cycle life: 4000 @ 80% DOD, 25°C ✅ Key Features ■ Pure sine wave inverter – stable power for all loads ■ Modular & stackable design – customize capacity as needed ■ 4000 charge cycles – reliable long-term performance ■ 11 DC output ports – connect multiple devices simultaneously ■ 24/7 plug & play use – ready for anytime backup ■ Built-in BMS – protection from overcharge, short-circuit, over-discharge, etc. ■ Quiet operation & compact footprint ⚡ Ideal For • Residential backup & off-grid living • Schools and classrooms • Commercial shops and kiosks • Public infrastructure & rural energy access MODEL HBP18-1212 HBP18-2024 HBP18-3024 HBP18-4024 INVERTER Rated power 1200W 2000W 3000W 4000W Surge power 2400W 4000W 6000W 8000W Output voltage waveform Pure sine wave Output voltage regulation 220~240Vac(setting) Output frequency 50Hz / 60Hz (±0.2Hz) Peak efficiency 90~93% Nominal DC input voltage 12Vdc (±0.3) 24Vdc (±0.3) 24Vdc (±0.3) 24Vdc (±0.3) Standby Consumption < 25W PV INPUT Max solar power input 900W 1800W 1800W 1800W PV max charging current 60A (±3A) 60A (±3A) 60A (±3A) 60A (±3A) Combined charging current 70A (±4A) 100A (±4A) 120A (±4A) 120A (±4A) Max efficiency 98.0% max PV array open circuit voltage 105VDC 160VDC 160VDC 160VDC PV Array MPPT Voltage Range 15~105V 30~128VDC 30~128VDC 30~128VDC AC INPUT AC input voltage 230Vac ±5% Acceptable input voltage range 90-280VAC Nominal input frequency 50Hz / 60Hz (Auto detection) Transfer time 10ms typical (UPS, VDE); 20ms typical (APL) AC CHARGE Charging current @ Nominal input voltage 20A (±4A) 40A/(±4A) 60A (±4A) 60A (±4A) Charging Algorithm 4-step (Li) OUTPUT AC output 230Vac (Socket *4pcs) Type-C DC output*1pcs USB (5V 2.4A) DC output*4pcs USB (12V 1A) DC output*2pcs LITHIUM BATTERY Energy 1280Wh 2560Wh 3072Wh 7168Wh 7168Wh Nominal voltage 12.8V 25.6V 25.6V 25.6V Battery capacity 100Ah 100Ah 120Ah 280Ah 280Ah Protection board 100A 100A 150A 150A Standard charging & discharge current 50A 50A 50A 50A 50A Operating temperature Charge 0~45°C Discharge -10~60°C DIMENSION Machine Dimension (W*H*D)(mm) 359*499*234 420*497*280 460*539*411 460*539*411 Package Dimension (W*H*D)(mm) 460*560*335 522*655*382 570*702*521 570*702*521 N.W(kg) 21 30 36 66 67 G.W(kg) 26 41 45 80 81 Standard Warranty Inverter: 2 years ; Lithium battery: 3 years CERTIFICATION & STANDARDS CE-EMC LVD (EN6100-6-3, EN6100-6-1 EN IEC62109-1, EN IEC62109-2); IEC62368-1
