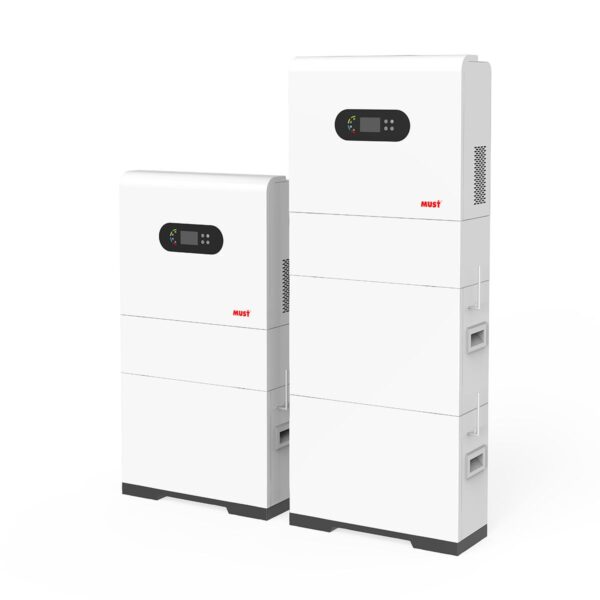

■ Lithium Battery Modular 5120Wh/10240Wh/15360Wh ■ Self-consumption and feed-back to the grid ■ Multiple Working Mode: Energy storage mode, load priority mode, power selling mode,and a high-efficiency mode (six time periods are provided for setting different modes to achieve peak-shaving and valley-filling, maximizing economic benefits) ■ Inside BMS,support to be charged and discharged according to bms requirements ■ Support to connect with generator ■ Automatic line-to-battery switch over MODEL HBP11-3648 PRO HBP11-4048 PRO HBP11-4648 PRO HBP11-5048 PRO HBP11-6048 PRO Rated power 3600W 4000W 4600W 5000W 6000W Nominal Battery System Voltage 48V PV INPUT(DC) Maximum recommended DC power 4000W 5000W 5500W 6000W 7000W Nominal DC operating voltage 360V Maximum DC voltage 500V MPPT voltage range 120V~500V Maximum input current 15A / 15A No.of MPP tracker 2 Strings per MPP tracker 1 INVERTER OUTPUT(AC) Nominal AC output power 3600W 4000W 4600W 5000W 6000W Nominal output voltage; range 220/230/240V;180-280V AC grid frequency; range 50/60Hz; 45~55/55-65Hz Nominal output current 15.6A 17.5A 20A 21.7A 26A Maximum output current 16A 18.1A 20.8A 22.7A 27.2A Inrush current (spike/duration) 57.5A/5.2us Total harmonic distortion i(THDi) <3% Power factor at rated power 1 Displacement power factor 0.8leading~0.8lagging Grid type Single phase BATTERY MODE OUTPUT(AC) Output Rated Power 3600W 4000W 4600W 5000W 6000W Nominal output voltage; accuracy range 230±1% Output ferequency; accuracy range 50/60Hz (optional)±0.2% Output rated current 15.6A 17.5A 20A 21.7A 26A Output waveform Pure sine wave Peak power 5400W,10s 6000W,10s 6900W,10s 7500W,10s 9000W,10s Total harmonic distortion (linear load) <3% BATTERY & CHARGER Note: Below Parameters base on one LiFePO4 Lithium Battery Modular Battery parameter 51.2VDC 100Ah Number of battery pack 1 2 1 2 2 3 2 3 2 3 Capacity 5120Wh 10240Wh 5120Wh 10240Wh 10240Wh 15360Wh 10240Wh 15360Wh 10240Wh 15360Wh Charging curve 3-stage adaptive with maintenance Protection Over-current protection / Over-temperature protection Maximum charging power 3600W 4000W 4600W 5000W 6000W Maximum charging currernt 75A 85A 95A 100A 125A EFFICIENCY Maximum efficiency 97.1% Euro-efficiency 96.5% MPPT efficiency 99.8% PROTECTION DEVICES DC switch rating for each MPPT; Grid monitoring; Output over current protection; Output overvoltage protection-varistor; Ground fault monitoring; Integrated all-pole sensitive leakage current MECHANICAL SPECIFICATIONS Machine Dimension (W*H*D)(mm) (Inverter Battery) 594*1154*220(5120Wh); 594*1559*220 (10240Wh); 594*1964*220 (15360Wh) Package Dimension (W*H*D)(mm) Inverter 900*335*714 Battery 666*280*483 (Single Battery) N.W(kg) Inverter 42 Battery(51.2V100Ah) 52 G.W(kg) Inverter 55 Battery(51.2V100Ah) 57 Standard Warranty Inverter: 5 years ; Lithium battery: 5 years OTHER Operating Temperature Range -15°C to 40°C Ingress protection rating IP66 Audible Noise 60dB MAX Display LED LCD CERTIFICATION & STANDARDS CE-EMC
